5MP HD GC5035 Sensor MIPI OV5648 Camera Module For Learning Machine

Brand Name : Sinoseen

Model Number : SNS-21540-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 5mp camera module

Sensor : 1/4' Omnivision OV5648

Resolution : 5MP 2592(H) x 1944(V)

Dimensions : (customizable)

Lens FOV : 80°(optional)

Focus Type : fixed focus

Interface : mipi camera module

Feature : high-definition

Contact Now

5mp HD gc2053/ov5648 sensor automatic white balance mipi interface camera module learning machine



5MP mipi interface camera module

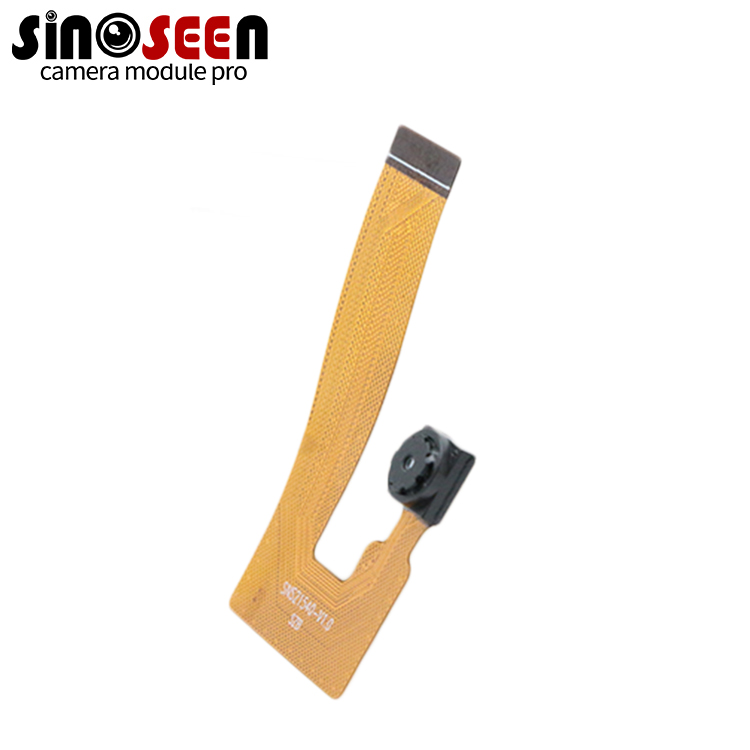

This is our newly developed camera module, 5MP pixel, using mipi interface, using FOV=60° lens fixed focus, with Omnivision OV5648 sensor, the picture quality is very good and stable. And this mod is very affordable. Can be used for tablet computers, learning machines, children's education, interactive learning machines, etc.



Specification
Model No SNS-21540-V1.0
Sensor 1/4’’ Omnivision OV5648
Pixel 5 Mega Pixel
Most effective pixels 2592(H) x 1944(V)
Pixel Size 1.4µm x 1.4µm
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
S/N ratio 36dB
Dynamic range 72 dB @ 8x gain
Sensitivity 690mV / lux-sec
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Lens TTL: 23.89MM
  Lens Size: 1/3 inch
  DFOV: 80°
  Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Power consumption DC 5V, 200mW
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
