Auto Focus HD 5MP Camera Module OV5640 With Fill In Led Light

Name: Auto Focus HD 5MP Camera Module OV5640 With Fill In Led Light
Brand: Sinoseen
Price: 1 USD

Buy cheap Auto Focus HD 5MP Camera Module OV5640 With Fill In Led Light product

Brand Name : Sinoseen

Model Number : SNS-USB5640AF-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/4"Omnivision OV5640

Resolution : 5MP (2592*1944)

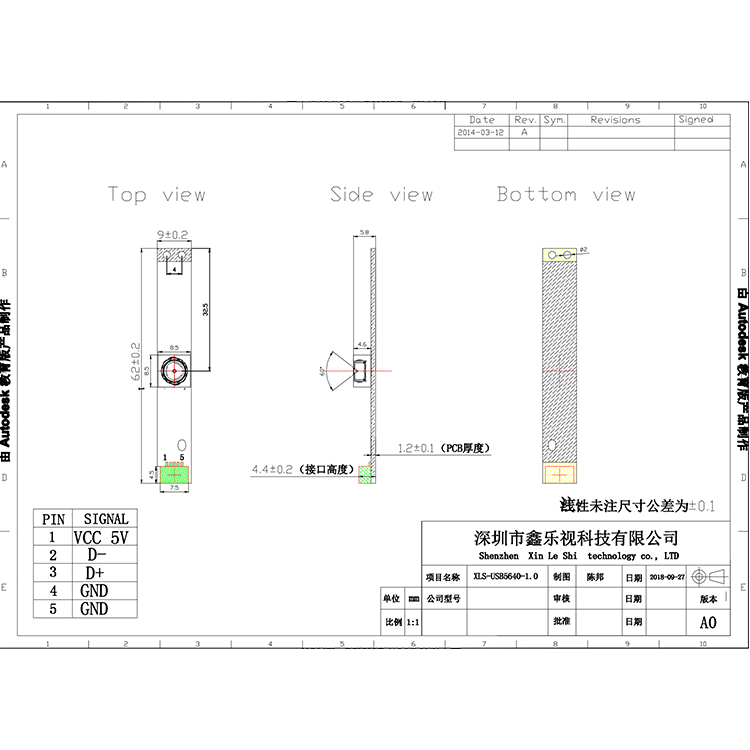

Dimensions : 62mmx9mm(customizable)

Lens FOV : 60°(optional)

Focus Type : Auto focus

Interface : USB2.0

Feature : HD

Contact Now

Auto Focus HD 5MP Camera Module OV5640 With Fill In Led Light

Auto focus 5mp HD usb camera module OV5640 CMOS sensor drive free with fill-in led light

HD 5MP Camera Module

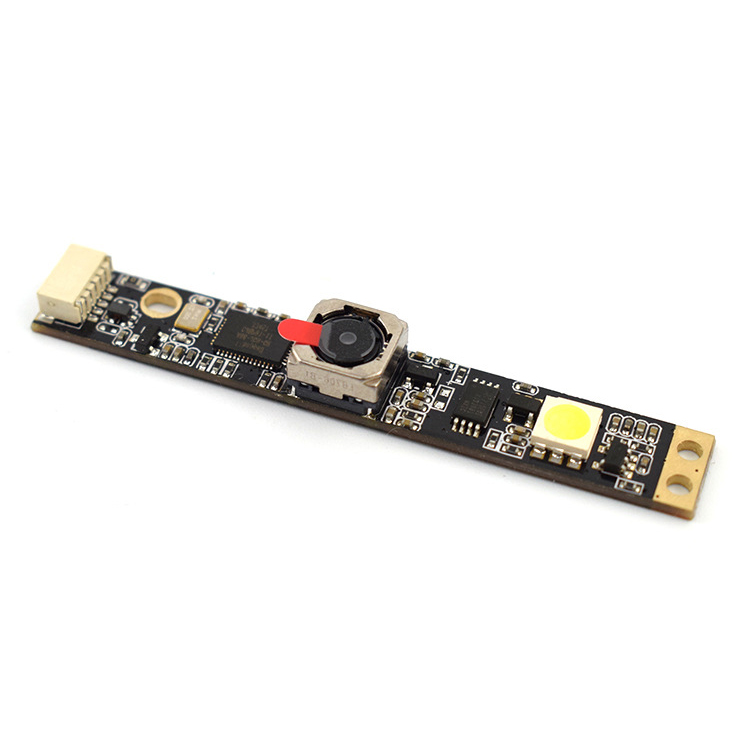

This is the hottest 5MP camera module we sell. It uses the OV5640 sensor from Omnivision and has excellent performance in all aspects. The picture quality is clear, the autofocus speed is also fast, and the long strip design allows it to be used in many specific narrow spaces. For example, advertising machines, notebooks and the like.

You can also choose to install LED lights or microphones to meet your various applications.

Specification

Model No	SNS-USB5640AF-V1.0
Pixel Size	1.4μm x 1.4μm
Effective Pixels	HD 2592(H)X1944(V)
Image Sensor	1/4"
AEC/AWB/AGC	Supported
Lens View	FOV60°(Optional),F/N(Optional)
Interface	USB BUS POWER 5P-1.0mm
Operating Voltage	DC5V
Working Current	120mA~220mA
Dimension	62X9mm
Cable Length	1m/1.5m
