5MP Fixed Focus DVP IR Camera Module For Aerial Filming Solutions

Name: 5MP Fixed Focus DVP IR Camera Module For Aerial Filming Solutions
Brand: Sinoseen
Price: 1 USD

Buy cheap 5MP Fixed Focus DVP IR Camera Module For Aerial Filming Solutions product

Brand Name : Sinoseen

Model Number : SNS-5MP-HM5065-v1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : DVP camera module

Sensor : 1/4" Himax HM5065

Resolution : 5MP 2592(H) x 1944(V)

Dimensions : Customizable

Lens FOV : 80°(optional)

Focus Type : Fixed focus

Interface : DVP

Feature : HD

Contact Now

5MP Fixed Focus DVP IR Camera Module For Aerial Filming Solutions

5MP Fixed Focus IR Filter HD DVP Camera Module With Himax HM5065 1/4 Inch Sensor

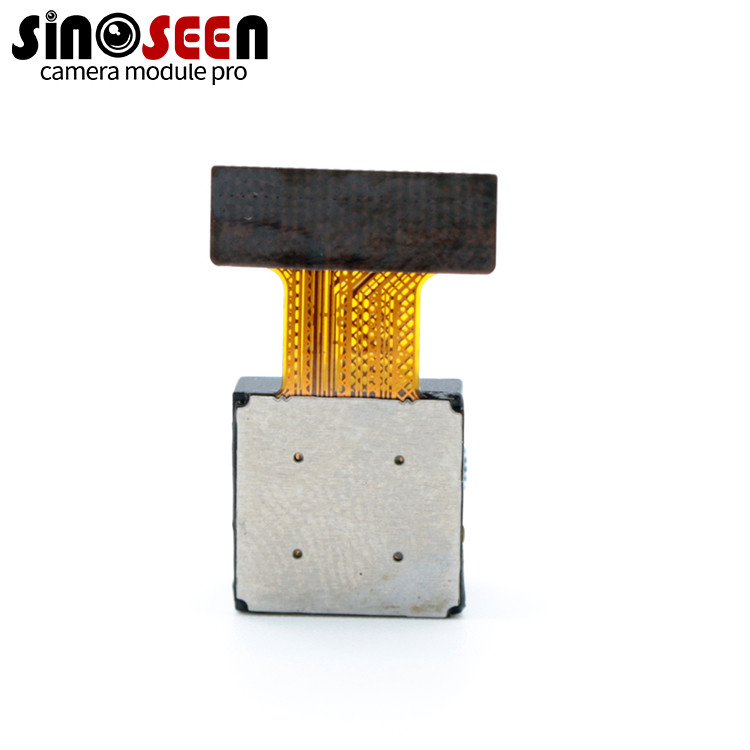

This is a 5MP DVP camera module with HM5065 sensor from Himax, HM5065 is a 5.0 megapixel resolution (2592Hx1944V) with 16 border pixels in 1/4" optical format.It support up to 15 fps with 5MP(JPEG422), 30 fps with analog binning 2x2,60 fps with analog bining 4x4.
The HM5065 DVP camera module is currently with a fixed focus lens, with IR 650nm filter, you can change it to auto focus, and choose 850nm IR filter or 940nm IR filter according to your actual needs. The module dimensions can also be customized.

Specification:DVP camera module

Pixel Size	1.4μm x 1.4μm
Effective Pixels	2592*1944
Image Sensor	1/4"
Sensor Type	HM5065
Lens View	FOV85°(Optional),F/N(Optional)
TV Distortion	<1% (Optional)
Temperature(Operation)	0~60℃
Temperature(Storage)	-20~70℃
Dimension	Customizable
