Sony IMX179 Endoscope Autofocus Camera Module USB2.0 Ultra HD 8MP

Brand Name : Sinoseen

Model Number : SNS-8MP-EDS-IMX179-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/3.2" SONY IMX179 Sensor

Resolution : 8MP (3264*2448)

Dimensions : 35.5mmx12.5mm(customizable)

Lens FOV : 90°(optional)

Focus Type : Auto focus

Interface : USB2.0

Feature : Endoscope camera module

Contact Now

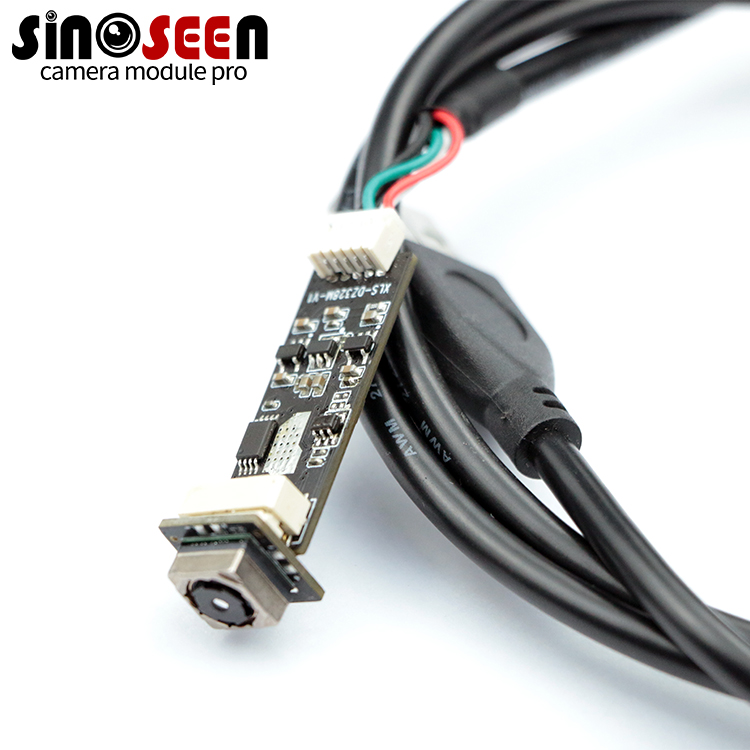

Sony IMX179 Endoscope Autofocus Camera Module USB2.0 Ultra HD 8MP

Ultra HD 8MP Auto Focus Endoscope USB2.0 camera module with Sony IMX179 Sensor



Endoscope Autofocus Camera Module

This is one of our highest resolution for USB endoscope camera module development, it is auto focus, 8 mega pixel (3264x2448) with SONY IMX179 CMOS Sensor, image quality is very high and stable. It is also one of the smallest camera modules with its size 35.5MMx12.5MM at the resolution of 8MP, you can almost put it within any of your equipment, no matter how limited the space is. Another advantage with this camera is that, unlike most other endoscope cameras which are normally with only 70° lens,this module can fit up to 120° wide angle lens!
This camera is widely used for many high-tech and high demanding applications like VR, AR, 3D, wearable, headset, glasses,robotics, IoT, artificial intelligence/AI, medical, industrial, agritech, biometrics, imaging, machine vision, computer vison,security, etc



Specification

Model No

SNS-8MP-EDS-IMX179-V1.0

Sensor

1/3.2’’ SONY IMX179 Sensor

Pixel

8 Mega Pixel

Most effective pixels

3264(H) x 2448(V)

Pixel Size

1.4µm x 1.4µm

Chroma

RGB/Color

Output Parameter

Compression format





Resolution





Frame rate



Shutter Type

Electronic rolling shutter

Focus type

Fixed Focus

S/N ratio

36dB

Dynamic range

60dB

Lens FOV

120°

Interface type

USB2.0

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Audio frequency

Optional

Microphone

Built-in

Power supply

USB BUS POWER

Power consumption

DC 5V, 110mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

35.5MM x 12.5MM

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
