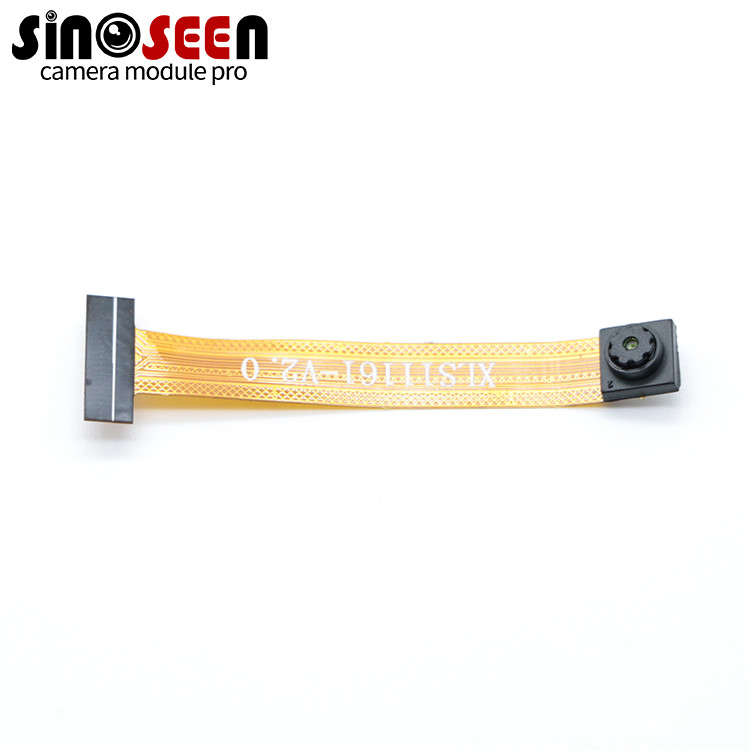

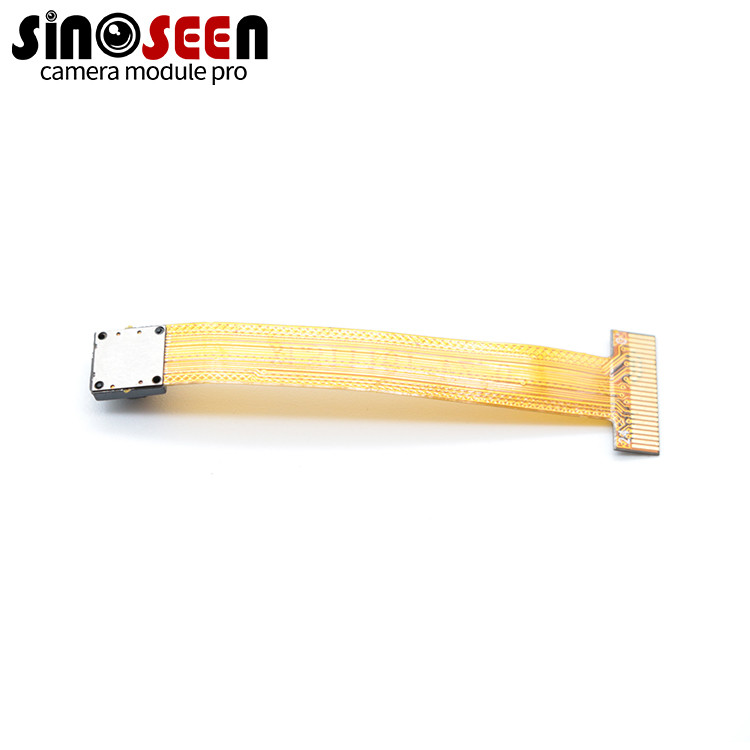

GC0308 Sensor 0.3MP Infrared Camera Module Low Power Consumption

Name: GC0308 Sensor 03MP Infrared Camera Module Low Power Consumption
Brand: Sinoseen
Price: 1 USD

Buy cheap GC0308 Sensor 0.3MP Infrared Camera Module Low Power Consumption product

Brand Name : Sinoseen

Model Number : SNS-11161-V2.0

Certification : RoHs

Place of Origin : Shenzhen,China

MOQ : 200

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : MIPI camera module

Sensor : 1/ 6.5" GalaxyCore GC0308

Resolution : 0.3MP (640*480)

Dimensions : Customizable

Lens FOV : 60°(optional)

Focus Type : Fixed focus

Interface : MIPI

Feature : Low power consumption

Contact Now

GC0308 Sensor 0.3MP Infrared Camera Module Low Power Consumption

Low Power Consumption 0.3MP MIPI Camera Module With GalaxyCore GC0308 Sensor

GC0308 Camera Module

This is a 0.3MP MIPI camera module with COMS sensor GC0308 from GalaxyCore. GC0308 is a cheap but good sensor, its image performance is very good and stable.

The MIPI camera module we made is used for scanning code applications, of course, you can also use it in other fields. You can customize the size you need, and match any angle lens.

If you have any needs, please contact our engineering team. We will provide you with the most suitable suggestions based on our years of experience.

Specification

Model No	SNS-11161-V2.0
Sensor	1/ 6.5’’ GalaxyCore GC0308
Pixel	0.3 Mega Pixel
Most effective pixels	640 (H) x 480 (V)
Pixel Size	3.4µm x 3.4µm
Resolution & Frame rate	640x480@30fps; 352x288@30fps; 320x240@30fps; 176x144@30fps; 160x120@30fps;
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	49dB
Dynamic range	55dB
Sensitivity	3300mV/Lux-sec
Lens FOV	Default 60° (Optional)
Dimension	Customizable
Storage temperature	-30°C to 80°C
Operating temperature	0°C to 60°C
