Medical Endoscope OEM Camera Modules Vision Solution OV9734 Sensor

Brand Name : Sinoseen

Model Number : SNS-1MP-OV9734-S2

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/9" Omnivision OV9734

Resolution : 1MP 1280(H) x 720(V)

Dimensions : Customizable

Lens FOV : 60°(optional)

Focus Type : Fixed focus

Interface : USB2.0

Feature : Endoscope camera module

Contact Now

Medical Endoscope OEM Camera Modules Vision Solution OV9734 Sensor

OEM Customizable Medical Endoscope USB Camera Module Vision Solution



Endoscope OEM Camera Module

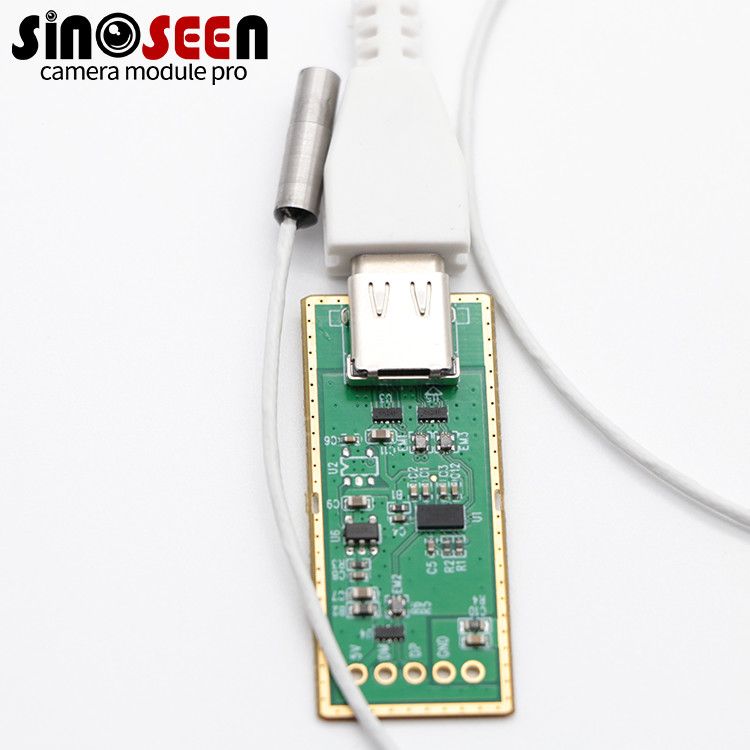

This is a OEM customizable medical endoscope USB camera module vision solution, using USB Type C interface, can be connected to the mobile phone APP, plug and play, real-time viewing, very convenient. The lens is equipped with 4 LED fill lights, and water-proof glue is used for water-proof treatment.
Because of its compact design, this endoscopic camera module is very popular among doctors and is often used in colonoscopy endoscopes or gastroscopic endoscopes.
If you have similar needs, you can use this design to customize your own endoscopic camera module. We have a professional engineering team to discuss with you various requirements such as structural dimensions and functions.





Specification
Module No SNS-1MP-OV9734-S2
Pixel Size 1.4μm x 1.4μm
Effective Pixels 1MP 1280(H) x 720(V)
Video output Raw Bayer10bit/8bit
Active Array Size Video Rate 30FPS
Image Sensor 1/9"
Sensor Type Omnivision OV9734
Lens view FOV60°(optional),F/N(optional)
TV Distortion <1%
AEC Support
AEB Support
AGC Support
Operating voltage AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature -20～70℃
Storage temperature 0～50℃
Dimensions Customizable
