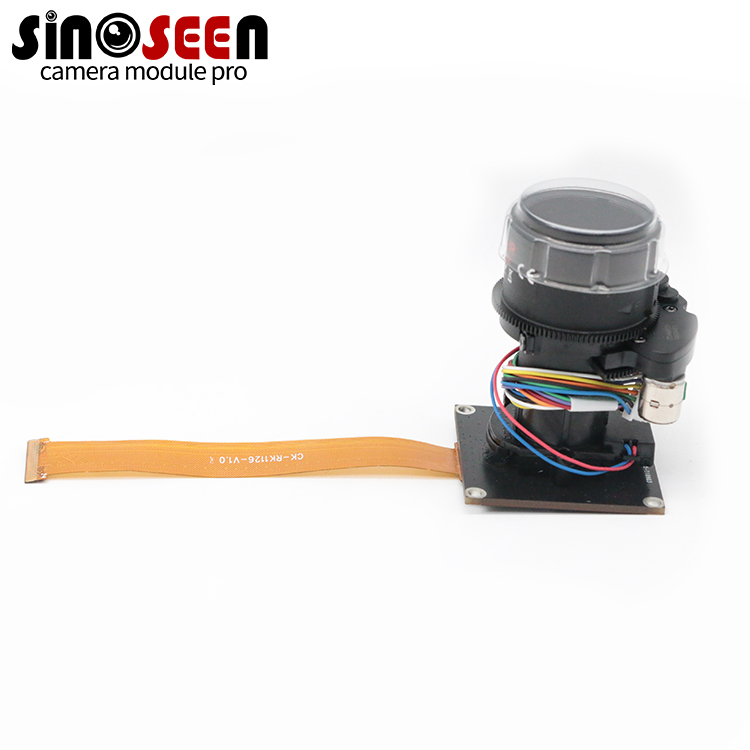

OEM 8MP Optical Zoom 4K USB Camera Module With IMX415 Sensor

Name: OEM 8MP Optical Zoom 4K USB Camera Module With IMX415 Sensor
Brand: Sinoseen
Price: 1 USD

Buy cheap OEM 8MP Optical Zoom 4K USB Camera Module With IMX415 Sensor product

Brand Name : Sinoseen

Model Number : SNS-8MP-IMX415-STY

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/2.8'' SONY IMX415 CMOS

Resolution : 8MP (3840*2160)

Dimensions : (customizable)

Lens FOV : 100°(optional)

Focus Type : optical zoom

Interface : USB2.0

Feature : 4K

Contact Now

Flexible FPC And PCB 4K USB Camera Module 8mp Optical Zoom With IMX415 Sensor.

OEM 8mp Optical Zoom 4k Flexible FPC And PCB USB Camera Module With IMX415 Sensor.

4K USB Camera Module

Features:

Size: 1/2.8

The maximum resolution is 3840*2160

Support optical zoom 4k high-definition pixels, can shoot clearer images in low light environments.

With high dynamic function, it can perfectly restore the authenticity of the picture

Application: HD photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition, etc.

Specification

Model No	SNS-8MP-IMX415-STY
Sensor	1/2.8’’ SONY IMX415 CMOS
Pixel	8 Mega Pixel
Most effective pixels	3840(H) x 2160(V)
Pixel Size	1.45µm x 1.45µm
Image area	3864um (H) x 2196um (V)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
Chroma	Color, RGB
Clock Frequency	6 to 72 MHz
Microphones	Built-in
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens construction: 5E+IR
	D FOV: 100 degree
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Operating Voltage	DC 5V
Operating Current	260mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
