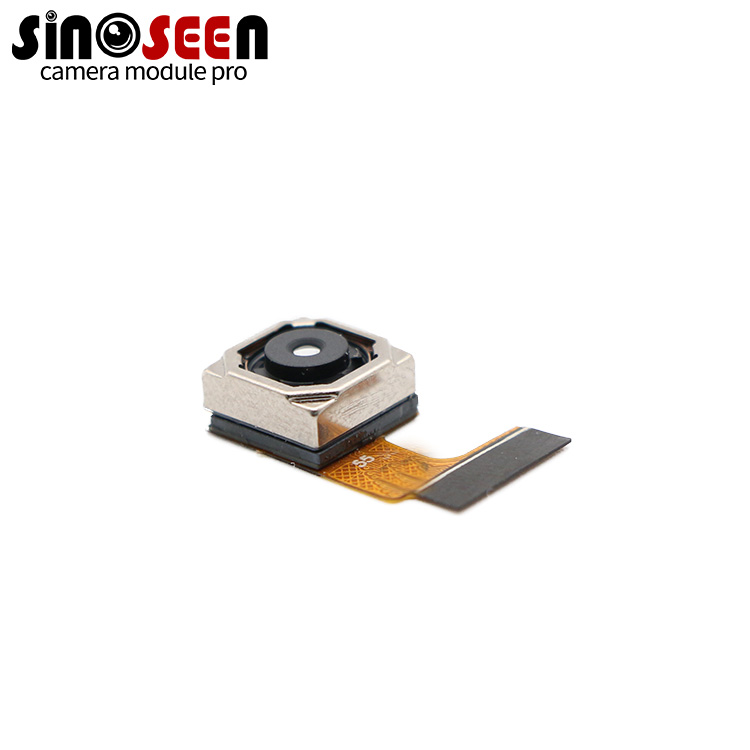

Autofocus Compact Camera Module 8MP OV8825 Sensor MIPI Interface

Name: Autofocus Compact Camera Module 8MP OV8825 Sensor MIPI Interface
Brand: Sinoseen
Price: 1 USD

Buy cheap Autofocus Compact Camera Module 8MP OV8825 Sensor MIPI Interface product

Brand Name : Sinoseen

Model Number : SNS81801-V1.0

Certification : RoHs

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : MIPI camera module

Sensor : OV8825

Resolution : 8MP (3264*2448)

Dimensions : Customizable

Lens FOV : (optional)

Focus Type : auto focus

Interface : MIPI

Feature : Low power consumption

Contact Now

8MP OV8825 Sensor MIPI Interface Autofocus Compact Camera Module

8MP Camera Module

The camera module is powered by the OV8825 image sensor, which is an 8-megapixel (8MP) CMOS sensor. The OV8825 sensor captures images with detailed resolution and good image quality. The camera module is equipped with an autofocus mechanism. Autofocus allows the camera module to automatically adjust focus based on the subject's distance, ensuring clear and sharp images. This feature is particularly useful in situations where the distance between the camera and the subject may vary. The camera module is compact and suitable for applications where space is limited. Its small size allows it to be easily integrated into devices with size constraints, such as smartphones, tablets or other portable devices.

Specification

Model No	SNS81801-V1.0
Sensor	OV8825
Pixel	8 Mega Pixel
Most effective pixels	3264 (H) x 2448 (V)
Pixel Size	1.4um*1.4um
Shutter Type	Electronic rolling shutter
Focus type	auto focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	TBDmV/Lux-sec
Lens FOV	Default 76° (Optional)
Dimension	Customizable
Storage temperature	-30°C to 85°C
Operating temperature	0°C to 60°C

Autofocus Compact Camera Module 8MP OV8825 Sensor MIPI Interface

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request
