2MP USB Camera Module Full HD Night Vision 1080P 30FPS With HM2131 Sensor

Shenzhen Sinoseen Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2MP USB Camera Module Full HD Night Vision 1080P 30FPS With HM2131 Sensor

Brand Name : Sinoseen

Model Number : SNS-2MP-HI2131-SOR

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 2MP camera module

Sensor : 1/2.7'' Himax HM2131 CMOS

Resolution : 1920(H) x 1080(V)

Dimensions : (customizable)

Lens FOV : 90°(optional)

Focus Type : Fixed Focus

Interface : USB2.0

Feature : FULL HD

Contact Now

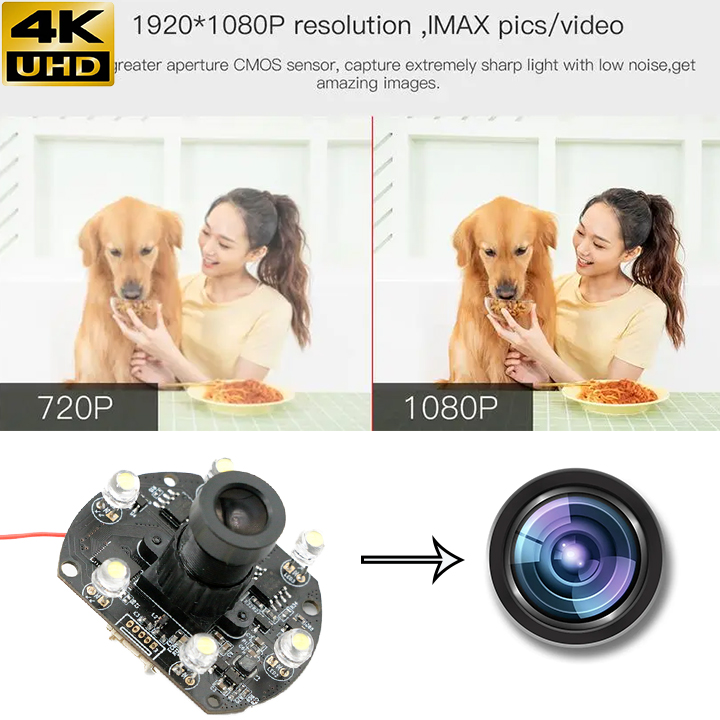

1080P USB Camera module 2MP Night Vision FULL HD  with HM2131 sensor

2MP FULL HD 1080P USB Camera module 30FPS with HM2131 sensor

Features:

1.Maximum resolution: 1920*1080

2. Full HD, able to output very clear picture quality

3. Six LED lights are installed around, which can also perform well in low-light environments

4. Touch, you can switch the position of the light

Applications: security monitoring, notebook computers, all-in-one machines, toys, high-speed cameras, QR code recognition, face recognition, etc.



Specification:2MP Night Vision FULL HD USB Camera module

Model No

SNS-2MP-HI2131-SOR

Sensor

1/2.7’’ Himax HM2131 CMOS

Pixel

2 Mega Pixel

Most effective pixels

1920(H) x 1080(V)

Pixel Size

3.0µm x 3.0µm

Protocol & Connection

Plug-&-Play (UVC compliant)

Compression format

MJPEG / YUV2 (YUYV)

Resolution & Frame rate

See above

Output Format

10b / 12b RAW

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

38.9dB

CRA

12°

Sensitivity

4600mV / Lux – sec

Interface type

USB2.0

Lens FOV

90°

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Audio frequency

Optional

Microphone

2

Power supply

USB BUS POWER

Power consumption

DC 5V, 180mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
