Tiny1-C Micro Thermal Imaging Mini Low power consumption Camera Module

Name: Tiny1C Micro Thermal Imaging Mini Low power consumption Camera Module
Brand: Sinoseen
Price: 1 USD

Buy cheap Tiny1-C Micro Thermal Imaging Mini Low power consumption Camera Module product

Brand Name : Sinoseen

MOQ : 10

Payment Terms : T/T

Supply Ability : 50000per month

Delivery Time : 7-10 work days

Application : Mobile phones, PDA, Thermometers;

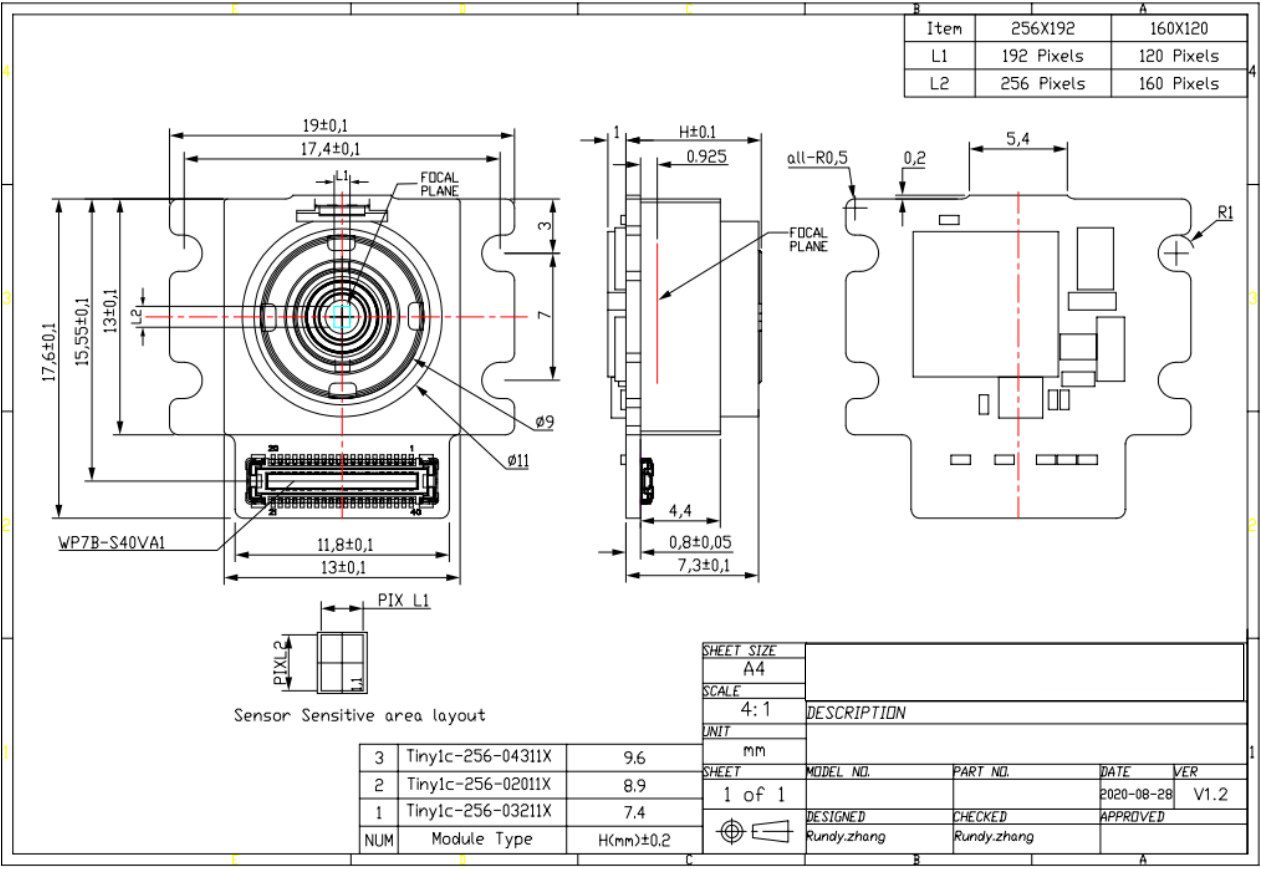

Dimensions : 13×13×8 mm

Resolution : 192×256/160×120

Interface : SPI

Pixel Size : 12μm

Sensor Type : VOx Uncooled infrared focal plane sensor with WLP package

Type : DVP camera module

Response time : <10ms

Frame rate : ≤25Hz

Lens : Athermalized

Radiometric range : WR: -15℃~+150℃（High Gain） 50℃~+550℃（Low Gain） CR: 30℃~45℃*1

Radiometric accuracy : WR: ±2℃ or ±2% CR: ±0.5℃*2

Input supply voltage : 3.3V, 5V

Optimum operating temperature range : -40℃~80℃ (Imaging) -10℃~75℃（WR）* 4 10℃~50℃（CR）

Contact Now

Tiny1-C is a long-wave infrared (8-14μm, LWIR) miniature thermal imaging module that can convert the object's own thermal radiation into images and temperature data. This product is small in size and has low power consumption. It is suitable for security monitoring, temperature measurement tools, PDAs, smart home appliances and other fields.

Tiny1-C Micro Thermal Imaging Mini Low power consumption Camera Module

Tiny1-C Micro Thermal Imaging Mini Low power consumption Camera Module Images
