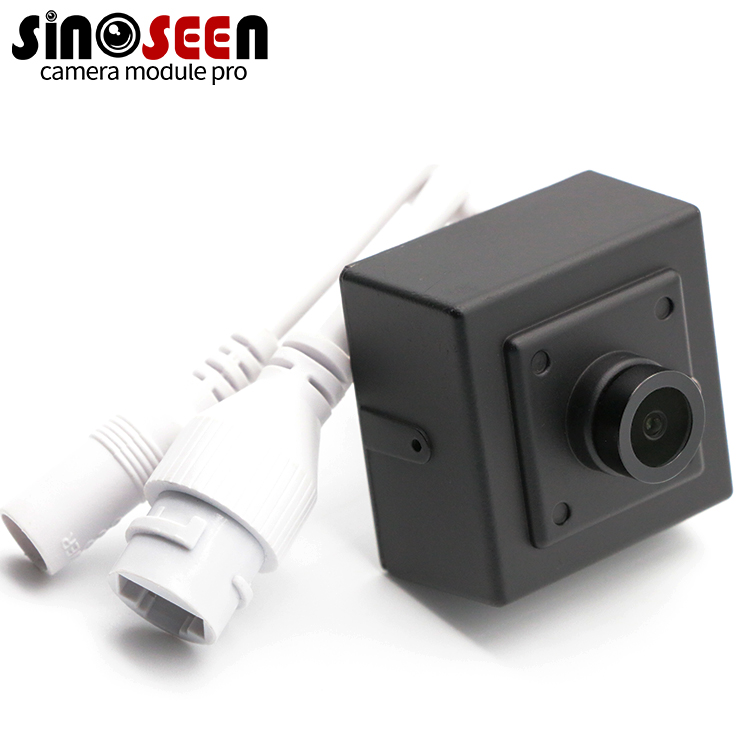

1/2.9 GC2053 Sensor 1920x1080P USB2.0 2MP Camera Module

Name: 129 GC2053 Sensor 1920x1080P USB20 2MP Camera Module
Brand: Sinoseen
Price: 1 USD

Buy cheap 1/2.9 GC2053 Sensor 1920x1080P USB2.0 2MP Camera Module product

Brand Name : Sinoseen

Model Number : SNS-GC2053-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 2MP camera module

Sensor : 1/2.9’GC2053 CMOS

Resolution : 1920(H) x 1080(V)

Dimensions : (customizable)

Pixel Size : 2.8um x2.8um

Focus Type : Fixed Focus

Interface : USB2.0

Feature : HDR

Contact Now

IPC 1/2.9 2Mega CMOS Image Sensor HD 1920x1080P USB Camera Module with GC2053 Sensor

USB camera module HD 1080P

This is an OEM customizable IPC network camera with USB3.0 interface, equipped with GC2053 sensor, GC2053 sensor is a high-quality 1080P CMOS image sensor, suitable for security camera products, digital camera products and mobile phone camera applications.
Full integration of high performance and low power features to create the best camera module for your design
Live cameras, car DVRs and various mobile apps.
Application :
Security camera
car
phone camera
Digital still and video cameras
Video telephony and conferencing equipment

Specification

Model No	SNS-GC2053-V1.0
Sensor	1/2.9’GC2053 CMOS
Pixel	2 Mega Pixel
Most effective pixels	1920(H) x 1080(V)
Pixel Size	2.8um x2.8um
Image Area	5808µm x 3288µm
Compression format	YUV2 / MJPG
Resolution	See above
Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	3700 mV/lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Power supply requirement	AVDD28: 2.7~3.3V(Typ.2.8V)
	DVDD18: 1.15~1.3V(Typ.1.2V)
	IOVDD: 1.7~3.0V(Typ.1.8V)
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Storage temperature	0~60℃
Operating temperature	-20~80℃
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
