Fixed Focus GC2053 Sensor 1080p HDR USB Camera Module New Custom

Name: Fixed Focus GC2053 Sensor 1080p HDR USB Camera Module New Custom
Brand: Sinoseen
Price: 1 USD

Buy cheap Fixed Focus GC2053 Sensor 1080p HDR USB Camera Module New Custom product

Brand Name : Sinoseen

Model Number : SNS-DZ1025-V1.1

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 2MP camera module

Sensor : 1/2.9’GC2053 CMOS

Resolution : 1920(H) x 1080(V)

Dimensions : (customizable)

Pixel Size : 2.8um x2.8um

Focus Type : Fixed Focus

Interface : USB2.0

Feature : HDR

Contact Now

New custom gc2053 sensor rolling shutter 1080p hdr auto exposure usb camera module for digital camera

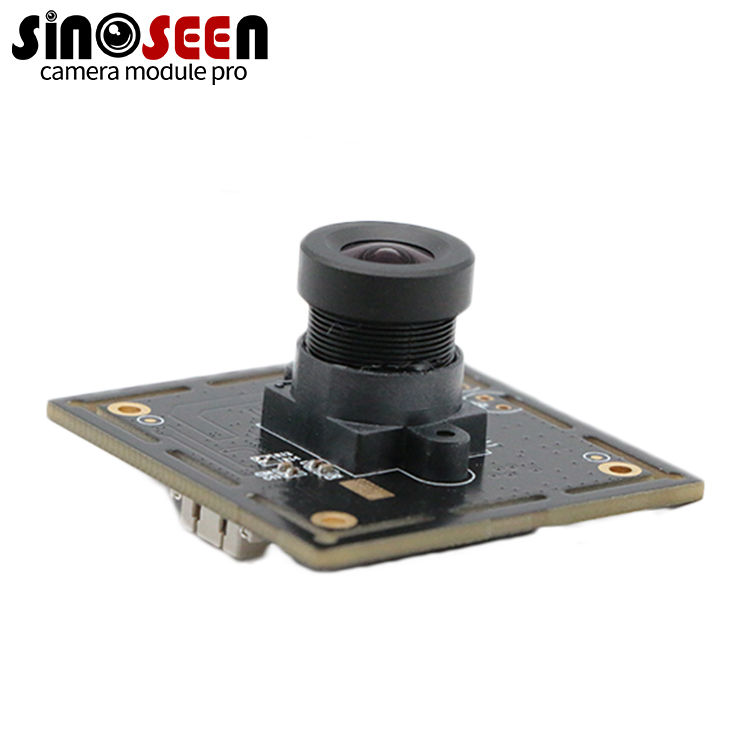

1080p hdr usb camera module

This is a high quality gc2053 camera module. The module has 1920x1080 pixels and fully integrates high performance and low power consumption, making this module an optimized design. The module also has a wide dynamic anti-glare function. In addition, scenes such as surveillance and car operation often appear at night, which also places high demands on the performance of image sensors in dark conditions.

Specification

Model No	SNS-DZ1025-V1.1
Sensor	1/2.9’GC2053 CMOS
Pixel	2 Mega Pixel
Most effective pixels	1920(H) x 1080(V)
Pixel Size	2.8um x2.8um
Image Area	5808µm x 3288µm
Compression format	YUV2 / MJPG
Resolution	See above
Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	3700 mV/lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Power supply requirement	AVDD28: 2.7~3.3V(Typ.2.8V)
	DVDD18: 1.15~1.3V(Typ.1.2V)
	IOVDD: 1.7~3.0V(Typ.1.8V)
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Storage temperature	0~60℃
Operating temperature	-20~80℃
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
