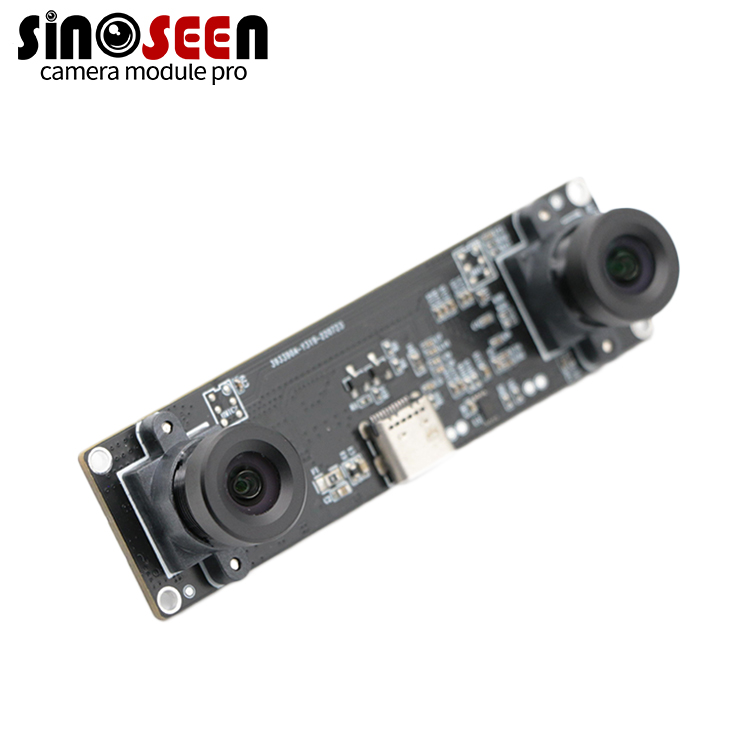

Dual Lens Camera Module For VR / AR Shooting

Brand Name : Sinoseen

Model Number : SNS-SM1034-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : Dual Lens camera module

Sensor : 1/2.7" OV2735

Resolution : 2MP 1920(H) x 1080(V)

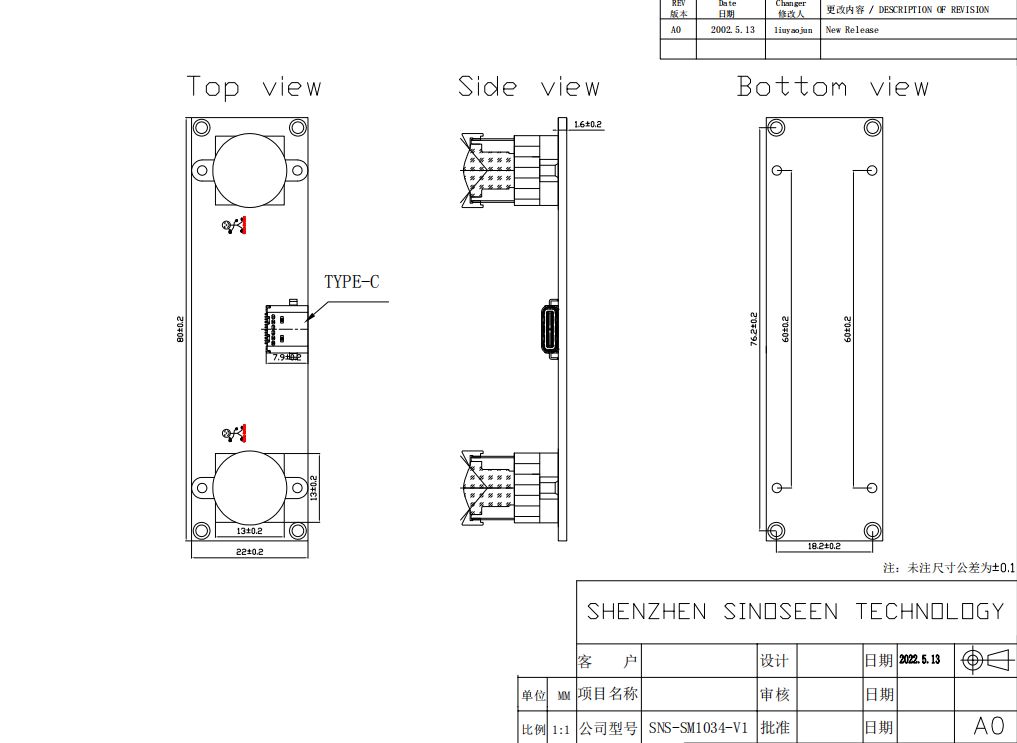

Dimensions : (customizable)

Lens FOV : 90°(optional)

Focus Type : Fixed Focus

Interface : USB2.0

Feature : Dual Lens

Contact Now

Binocular Sync Vibration Camera 1080P 60FPS 3D Calibration for VR/AR Shooting



This is a full featured HD 1080p/720p camera module with OV2735 sensor. Refers to devices that support IP cameras, HD analog cameras, or 1080p video capture at 30fps. Support low power consumption mode, maintain stable image quality in the operating temperature range of 0"C to 60%C, and significantly reduce power consumption. This module can be programmed to control: gain, exposure, frame rate, image size, horizontal mirroring, Vertical flip, crop and window.


Specification
Active array size 1920(H) x 1080(V)
Shutter type Electronic rolling shutter (ERS)
Optical format 1/2.7-inch
Lens chief ray angle 17 degree
ADC 10-bit
Sensitivity 5800 mV/Lux-sec
SNRmax TdB
Dynamic range TdB
Scan mode Progressive scan
Input clock Max 50MHz
Pixel clock Max 148.5MHz
Max. frame rate

1080p: 1920x1080 Linear@ 60fps

1080p: 1920x1080 HDR+LTM @30fps

Supply voltage

Analog: 3.3 V

Digital: 1.2 V

I/O: 1.8V / 3.3V

Power consumption

75mW@1080p30 (MIPI)

54.5mW@1080p30 (DVP w/o I/O)

124mW@HDR-LTM1080p30 (MIPI)

107mW@HDR-LTM 1080p30 (DVP w/o

I/O)

Operating temperature 0~60℃
Dual Lens Camera Module For VR / AR ShootingDual Lens Camera Module For VR / AR Shooting







Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request
