MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters

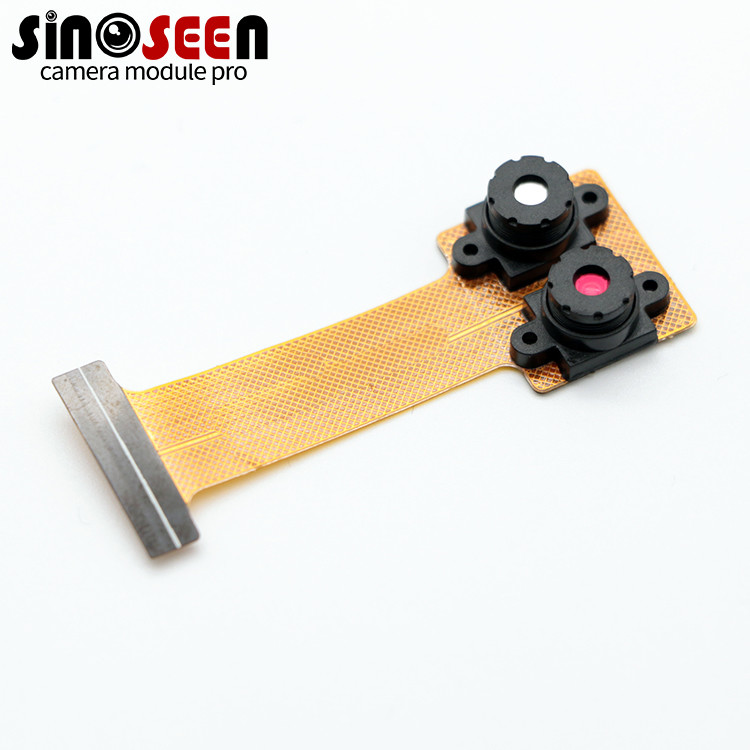

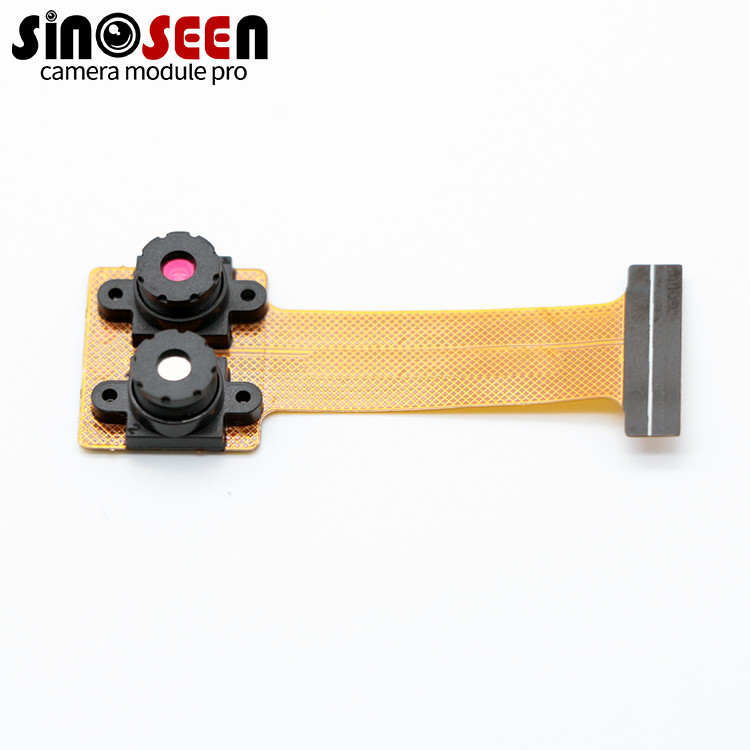

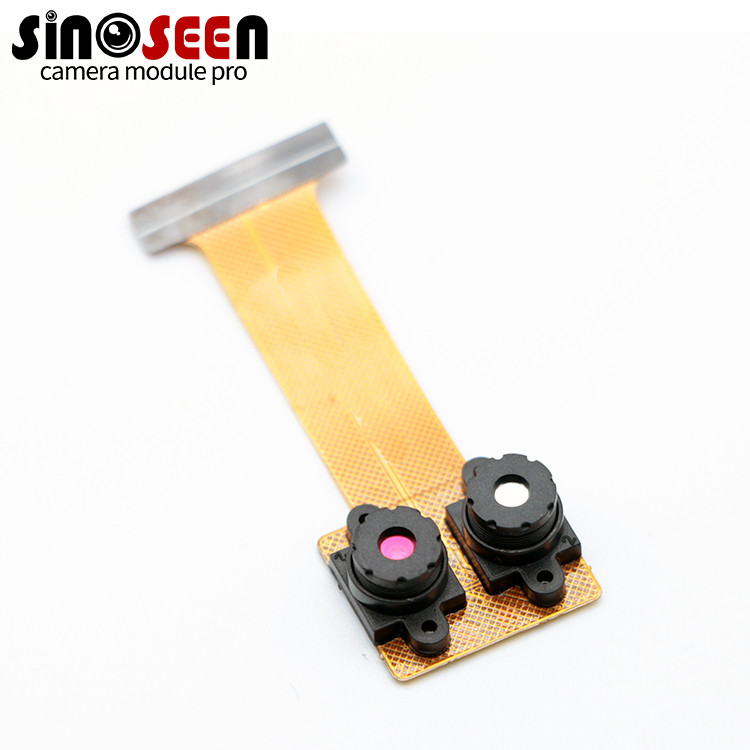

Dual Lens MIPI CSI2 Interface Flexible FPC 1MP 720P Camera Module With Omnivision OV9732 CMOS Sensor
This is our newly developed MIPI binocular camera module. It uses the OV9732 chip. The two lenses use different filters, 650nm and 850nm. You can choose different according to your actual needs. The filter, such as 940nm.
OV9732 is a 1/4 inch chip, 720P HD, and outputs color images. It has the following features:
support for image sizes:full size(1280x720),VGA(640x480),2x2 RGB binning (640x360)
support for output formats:10-bit RAW output with 1-lane MIPI and DVP
on-chip phase loch loop(PLL)
programmable controls for frame rate,mirror and flip,gain/expourse,and windowing
support for horizontal and vertical sub-sampling
low power module(LMP) function
capable of maintaining register values at software power down
standard SCCB interface
GPIO tri-state configurability and programmable polarity
FSIN
image quality control:defect pixel correction(DPC) and automatic black level calibration(ABLC)
Main applications: IP camera,life style camera,surveillance,motion camera
Specification
| Model No | SNS-DualOV9732-M1.0 |
| Sensor | 1/4’’ Omnivision OV9732 CMOS |
| Pixel | 1 Mega Pixel |
| Most effective pixels | 2560(H) x 720(V) |
| Pixel Size | 3.0µm x 3.0µm |
| Image area | 3888µm x 2208µm |
| Compression format | MJPG / YUY2 |
| Resolution | See above |
| Frame Rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus/Manually Adjustable |
| S/N ratio | 39dB |
| Dynamic range | 72dB |
| Sensitivity | 2066mV / lux-sec |
| CRA (Chief Ray Angle) | 9 degree |
| Lens | Lens Size: 1/4 inch |
| FOV: 60° |
| Thread Size: M12*P0.5 |
| Audio frequency | Optional |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Not Supported |
| Dimension | Customizable |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
