1080P HDR HD Dual Lens Camera Module With PS5268 OV2735 Sensor

Brand Name : Sinoseen

Model Number : SNS-OV-PS5268-27

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : Dual Lens camera module

Sensor : PS5268 /OV2735

Resolution : 2MP 1928(H) x 1088(V)

Dimensions : (customizable)

Lens FOV : 90°(optional)

Focus Type : Fixed Focus

Interface : USB2.0

Feature : Dual Lens

Contact Now

HD Dual Lens Camera Module 1080P HDR With PS5268 OV2735 Sensor

1080P HDR HD Dual Lens Camera Module With PS5268 OV2735 Sensor



HD Dual Lens Camera Module​

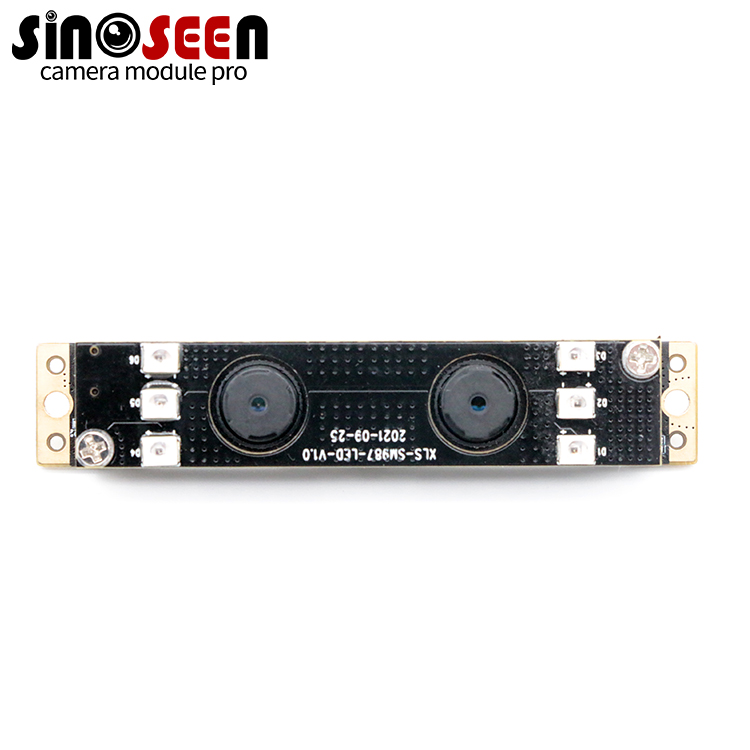

This is our newly developed Deal Lens camera module.This Deal Lens camera module uses two different 2mp sensors, PS5268 sensor and ov2735 sensor.Both chips have the characteristics of high dynamics and high definition, and can have very good image quality output..For heat dissipation considerations, we designed a double-layer PCB board design.We also designed six LEDs with very good brightness for this camera module, which can shoot very clearly in low-light environments.This camera module can be widely used in 3D, face recognition, industrial detection, AR, VR, biological detection and other fields.



Specification
Parameter Typical Value
SENSOR PS5268/OV2735
Active array size 1928(H) x 1088(V)
Pixel size 3.0um (H) x 3.0um (V)
Shutter type Electronic rolling shutter (ERS)
Optical format 1/2.7-inch
Lens chief ray angle 17 degree
ADC 10-bit
Sensitivity 5800 mV/Lux-sec
SNRmax 41 dB
Dynamic range 85 dB
Scan mode Progressive scan
Input clock Max 50MHz
Pixel clock Max 148.5MHz
Max. frame rate

1080p: 1920x1080 Linear@ 60fps

1080p: 1920x1080 HDR+LTM @30fps
Supply voltage

Analog: 3.3 V

Digital: 1.2 V

I/O: 1.8V / 3.3V
Power consumption

75mW@1080p30 (MIPI)

54.5mW@1080p30 (DVP w/o I/O)

124mW@HDR-LTM1080p30 (MIPI)

107mW@HDR-LTM 1080p30 (DVP w/o

I/O)
Operating temperature -30°C ~ 85°C


1080P HDR HD Dual Lens Camera Module With PS5268 OV2735 Sensor1080P HDR HD Dual Lens Camera Module With PS5268 OV2735 Sensor
